Front Bumper Grille with Mercedes-Benz Logo – M-Class ML W163 Facelift – A1638851581 / 1638851581

Since its introduction in the late 1990s, the Mercedes-Benz M-Class W163 has established itself as one of the German manufacturer's most iconic SUVs, combining comfort, versatility, and elegance. Today, this first-generation model continues to appeal to enthusiasts looking to preserve or personalize their vehicle's appearance.

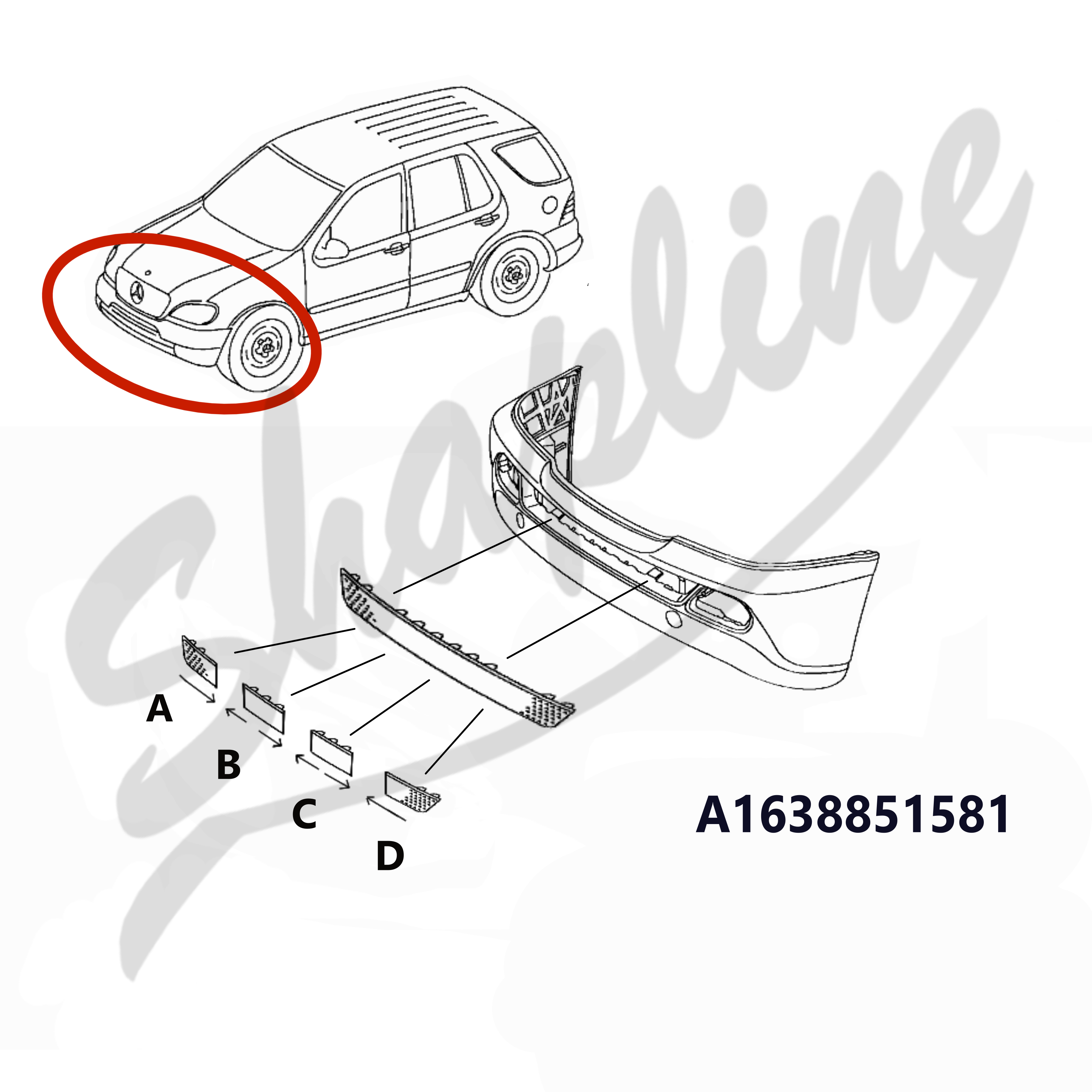

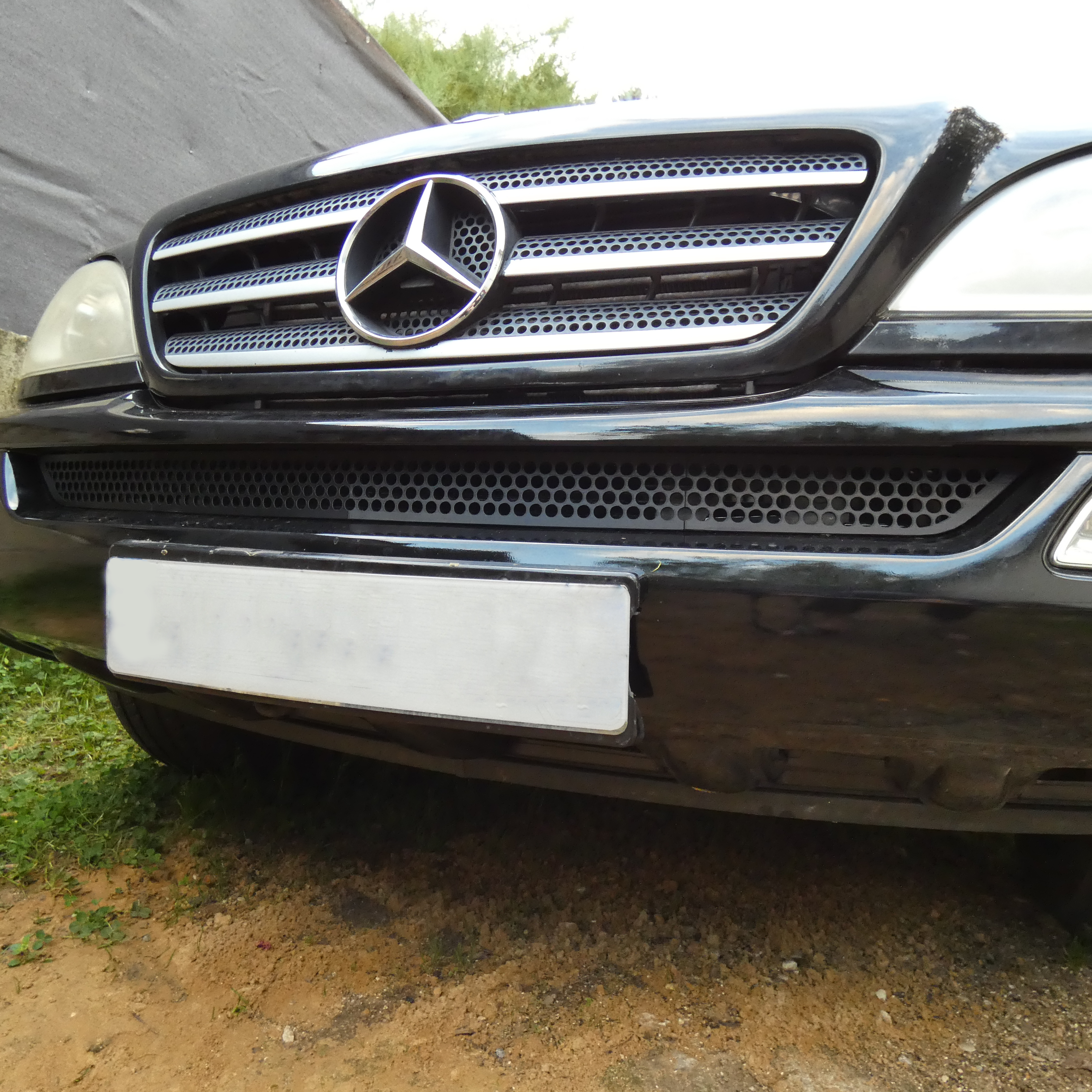

To bring a touch of originality to the front end of the Mercedes-Benz ML-Class W163 Phase 2, Shapline offers a reinterpretation of the central ventilation grille, inspired by original manufacturer part number A1638851581. Unlike the classic version, this design features a series of openwork patterns inspired by the famous Mercedes-Benz three-pointed star, transforming the bumper grille into a distinctive styling feature.

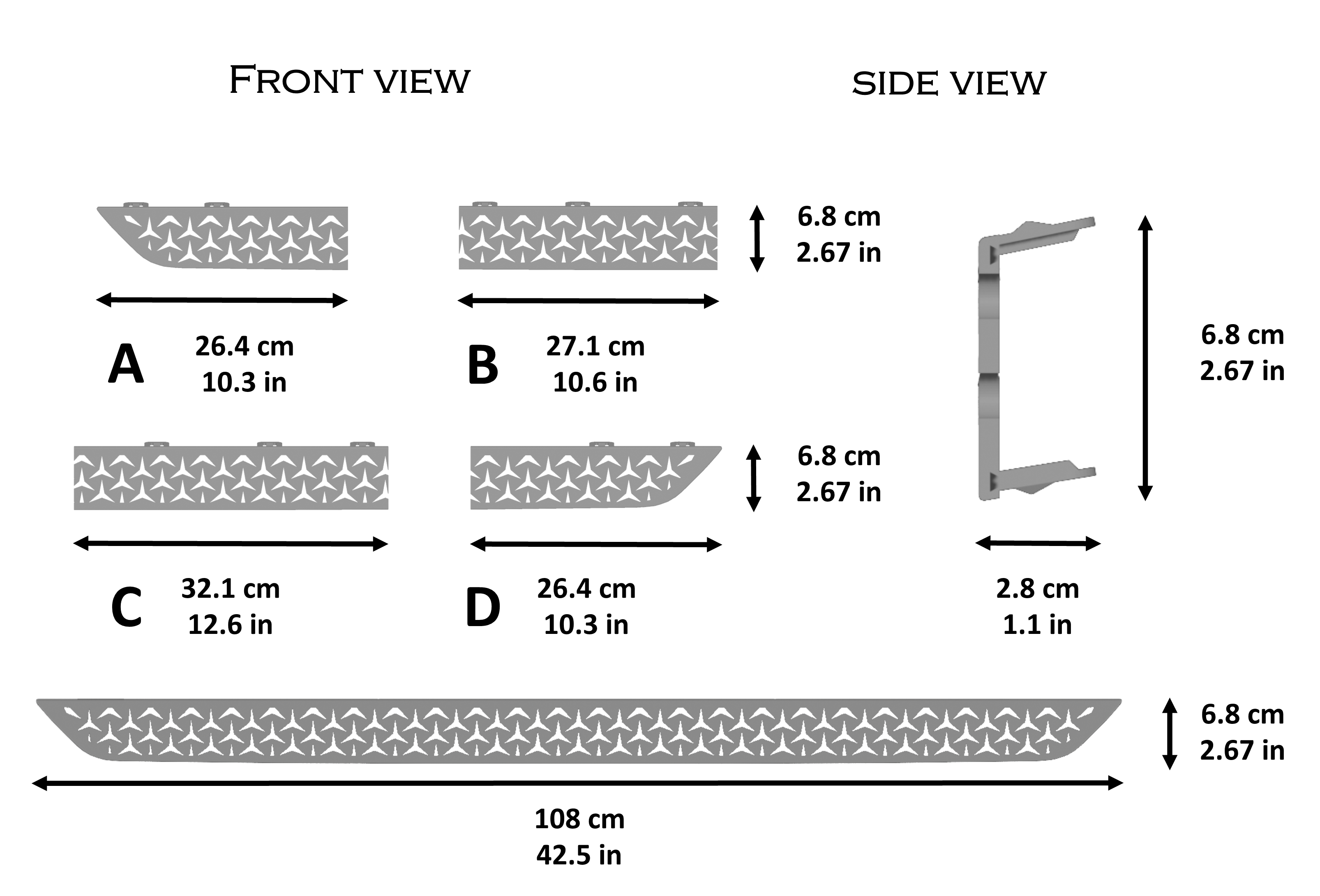

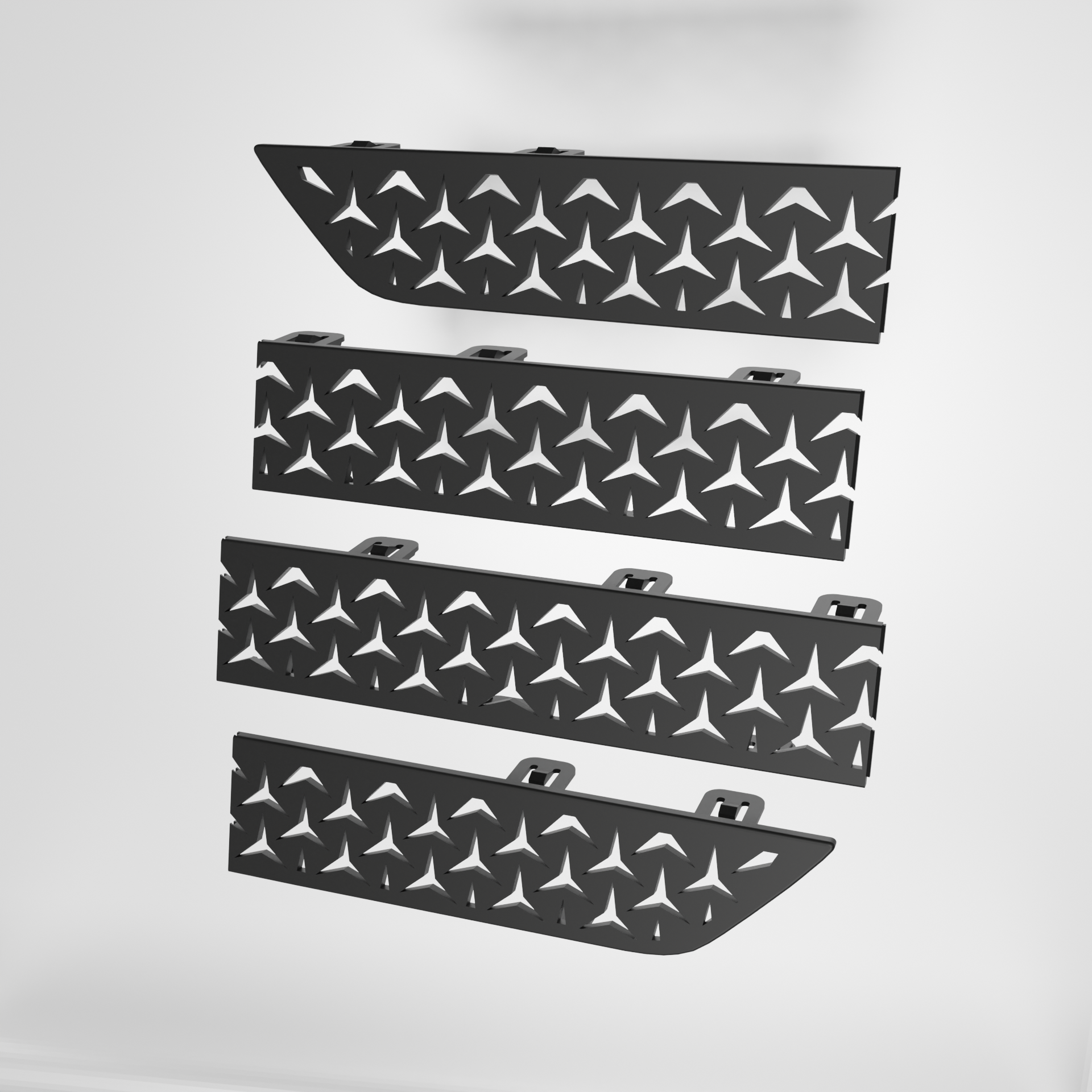

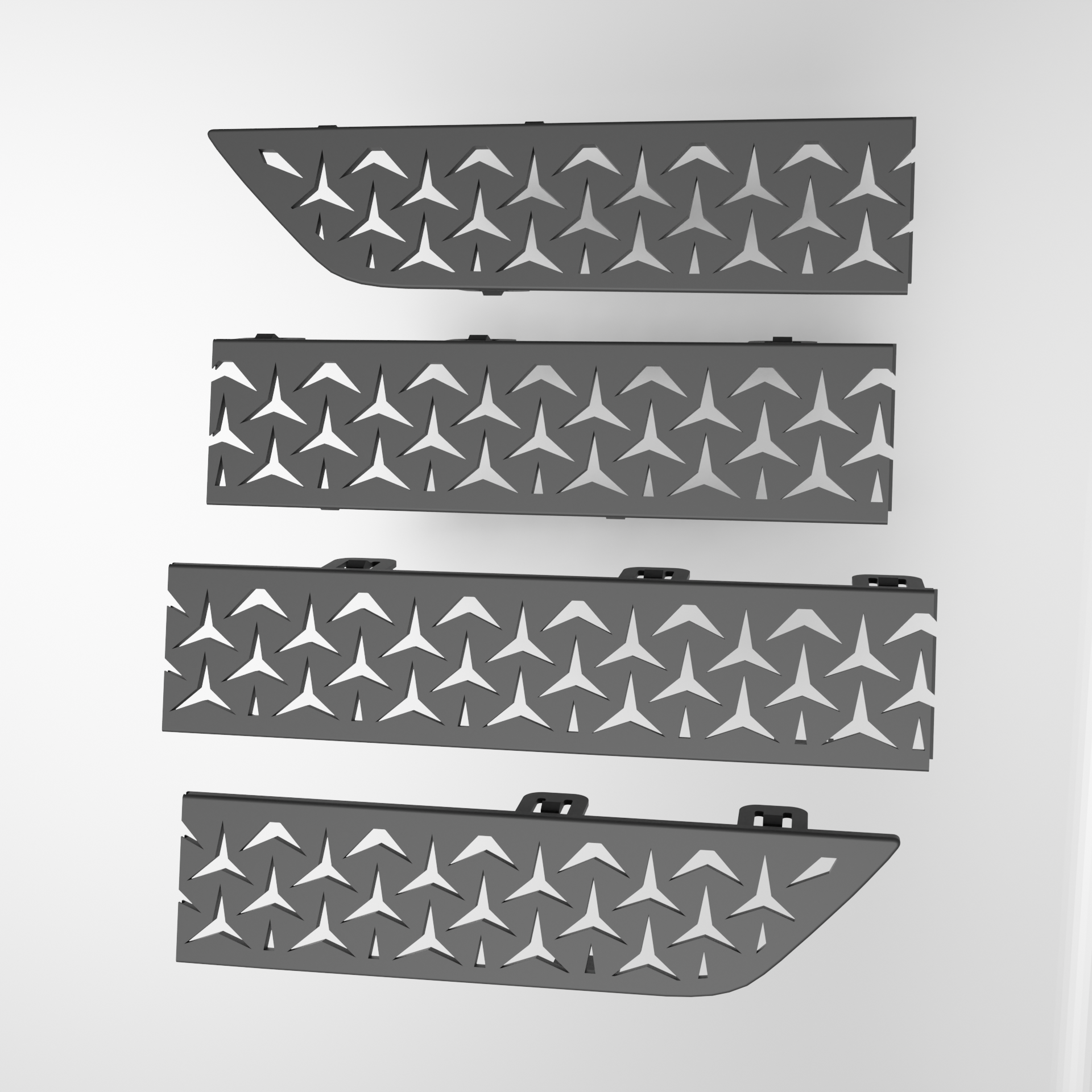

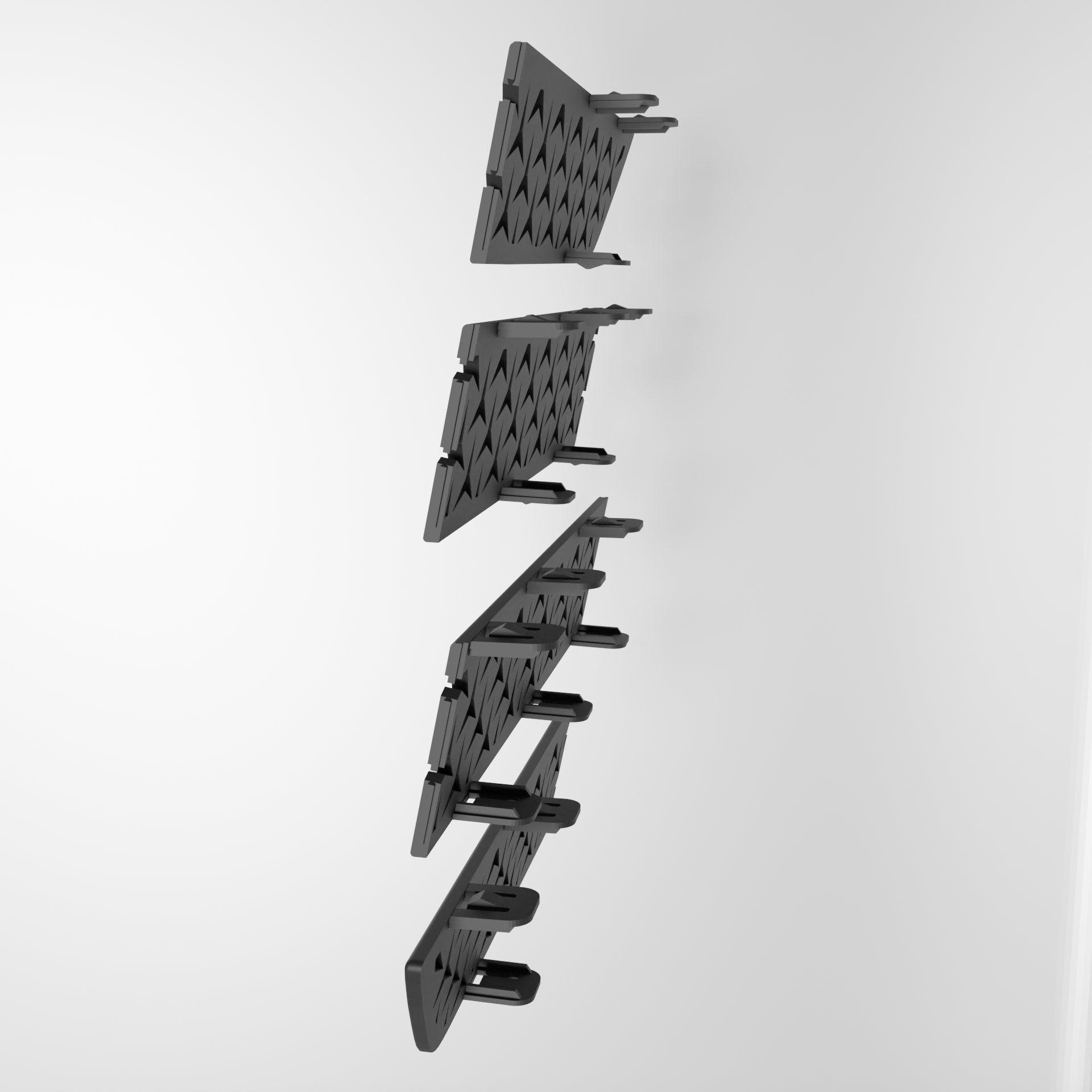

Designed for 3D printing, the grille is divided into four sections and available with three assembly systems: sliding rails, connecting spacers, or thermoplastic rivets. A creation intended for enthusiasts who want to combine the distinctive character of their Mercedes-Benz with an original customization project made by their own hands.

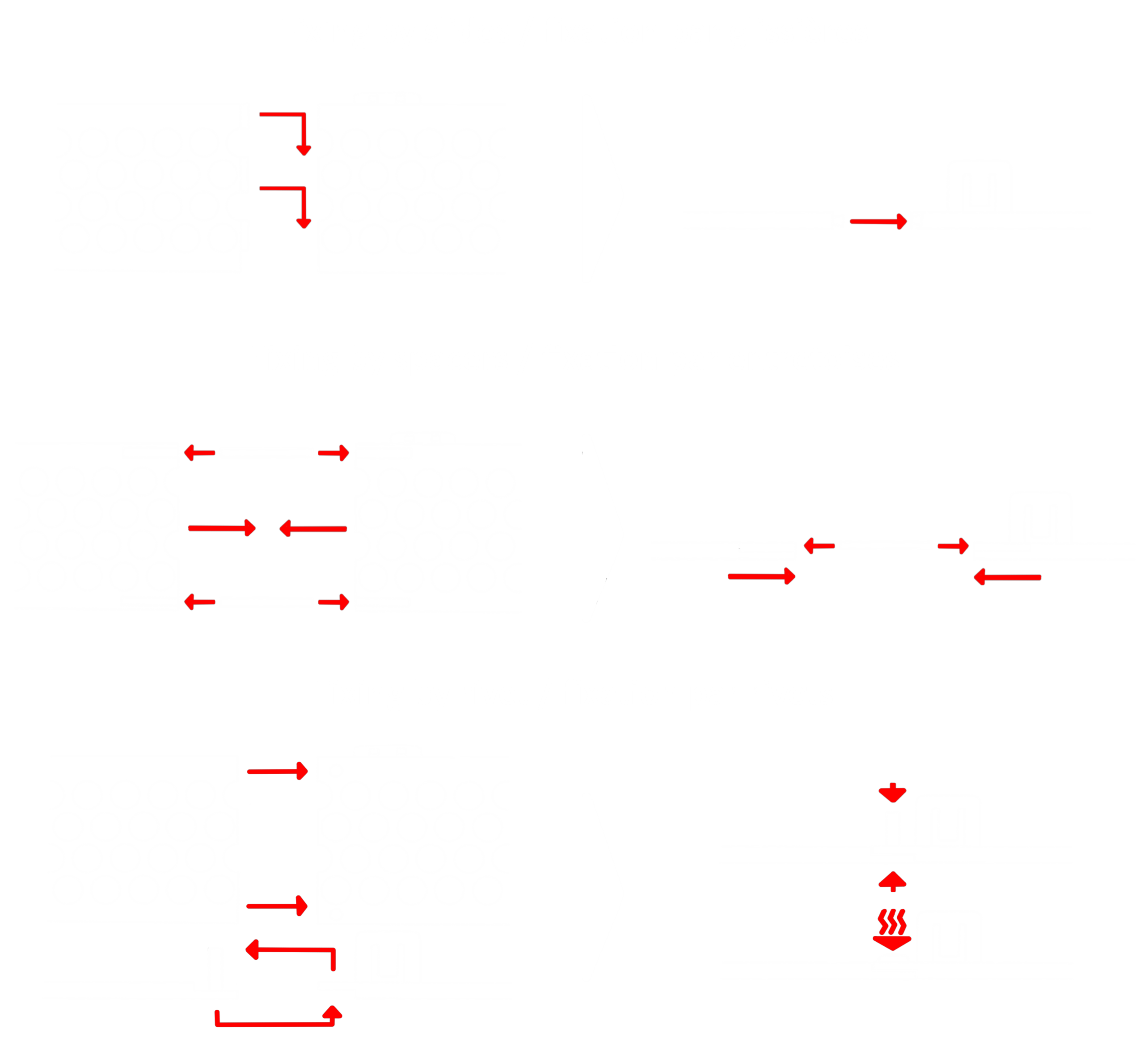

• Sliding rail assembly: this first version uses sliding rails positioned on each side of the components, ensuring simple and precise assembly.
• Spacer assembly: this second version uses connecting spacers inserted into the printed components, providing a secure and accurately aligned assembly.
• Rivet assembly: this final version features protruding pins on each component, which can be progressively melted using a soldering iron to form strong and durable rivets.

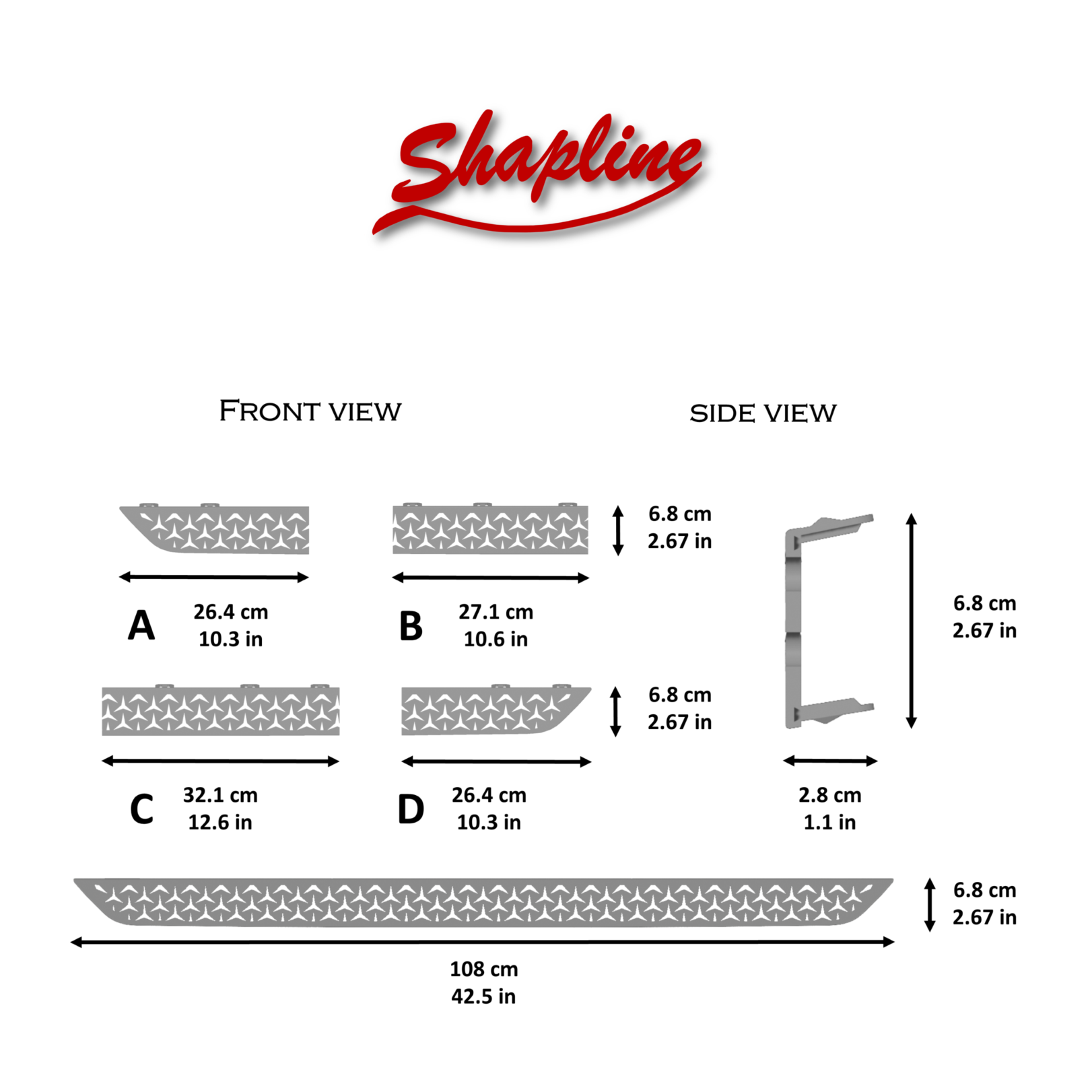

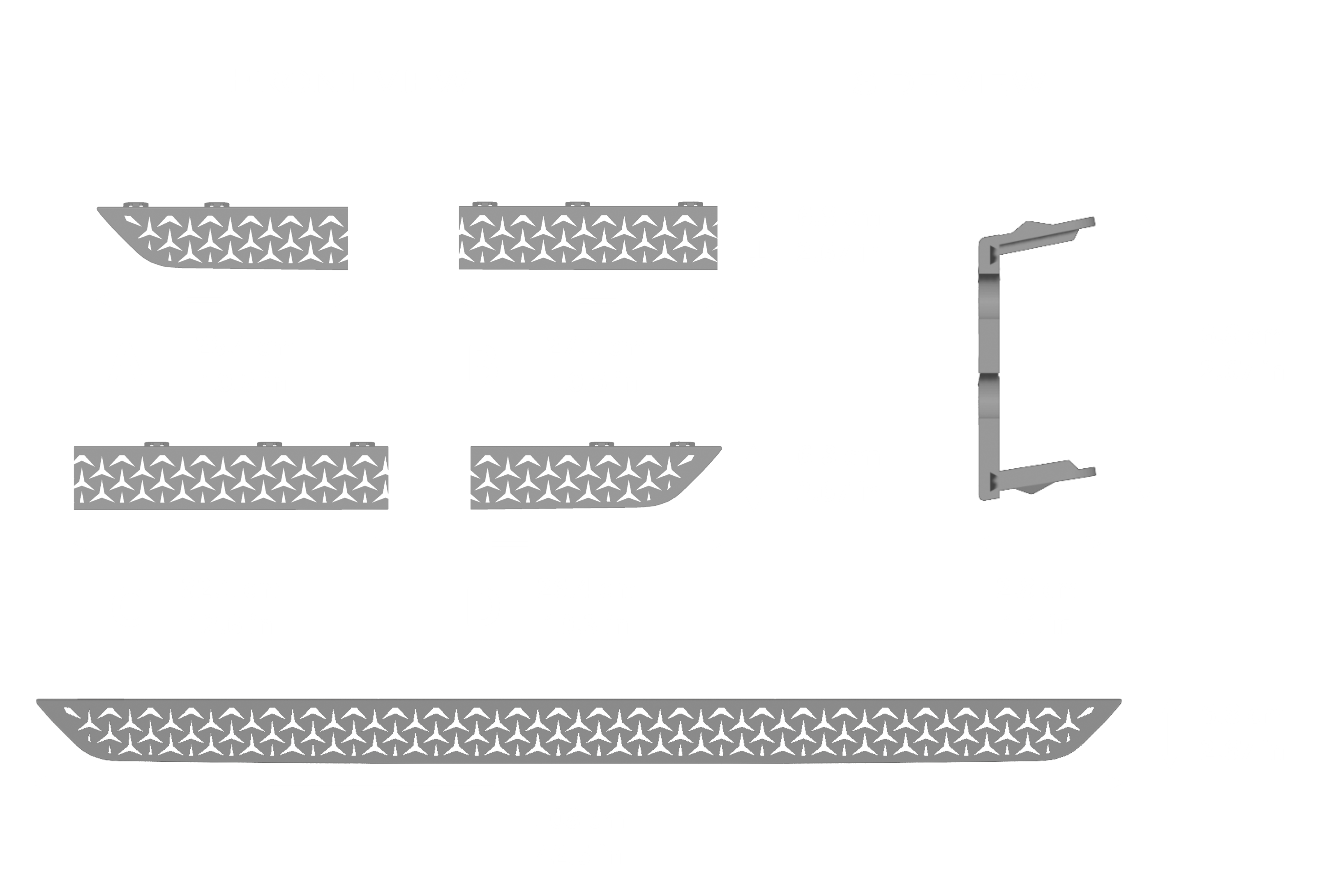

Approximate dimensions after printing

Compatibility

Product contents

The package includes:

• All 3D printing files (STL) for the ventilation grille with Mercedes-Benz logo design A1638851581 / 1638851581 for Mercedes-Benz ML-Class (W163), including all 3 assembly systems
• License of use

Important: Please note that this offer includes digital products only. The components and photographs shown are provided for illustrative and informational purposes only. We recommend using a 3D printer with a build plate measuring at least 25 x 25 cm (diagonal printing is recommended) to print certain parts. Otherwise, these parts may need to be divided into two sections.

3D printing recommendations

We recommend using ABS filament, which is better suited for automotive applications thanks to its strength, durability, and resistance to moisture and sunlight.

Assembly recommendations

Important: To ensure a strong and durable assembly when using the spacer or sliding rail mounting systems, you can apply an adhesive compatible with the filament or material used for 3D printing to permanently secure the components together.

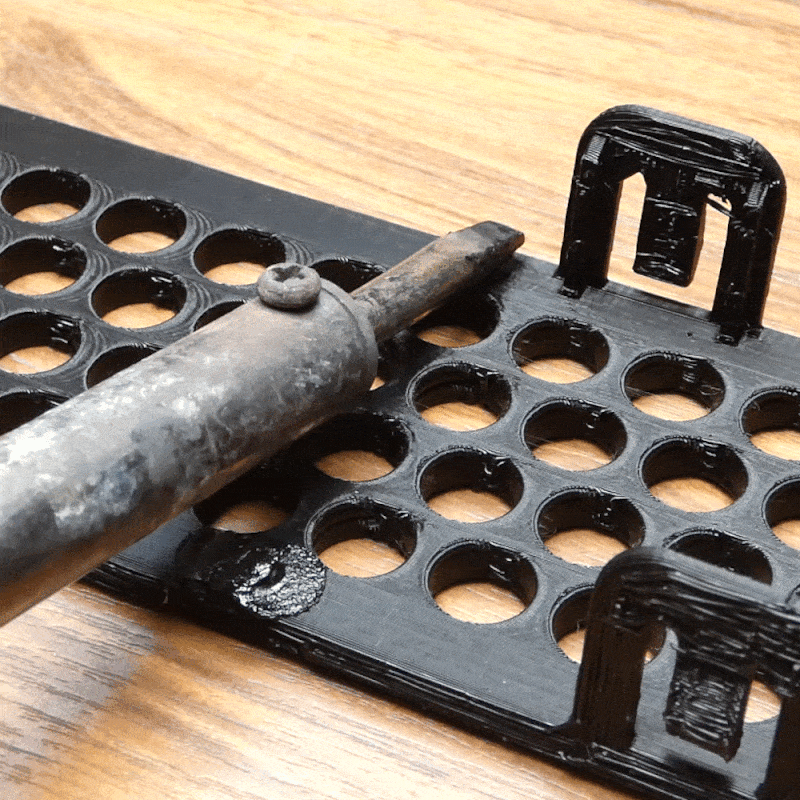

For the rivet mounting system, we recommend using a soldering iron to gradually melt the protruding pin and form a rivet that holds the components together. Always follow the necessary safety instructions when using your equipment and wear appropriate protective equipment during this operation.
