Trunk Lock Sealing Grommet 1H5827527A
Replace a worn or damaged trunk lock sealing grommet with this digital 3D model corresponding to Volkswagen part number 1H5827527A.
1,50 €Personal, non-commercial use. Digital files may not be sold, shared, gifted or redistributed.
View license termsA vehicle's watertightness depends on numerous components, some of which may be discreet but are essential to its long-term preservation. Around the rear trunk lock, a sealing ring helps prevent water infiltration and the accumulation of dirt and debris around the bodywork.
After several decades of use, this small component may lose its flexibility, develop cracks, or show signs of wear, particularly on Volkswagen vehicles from the 1990s.

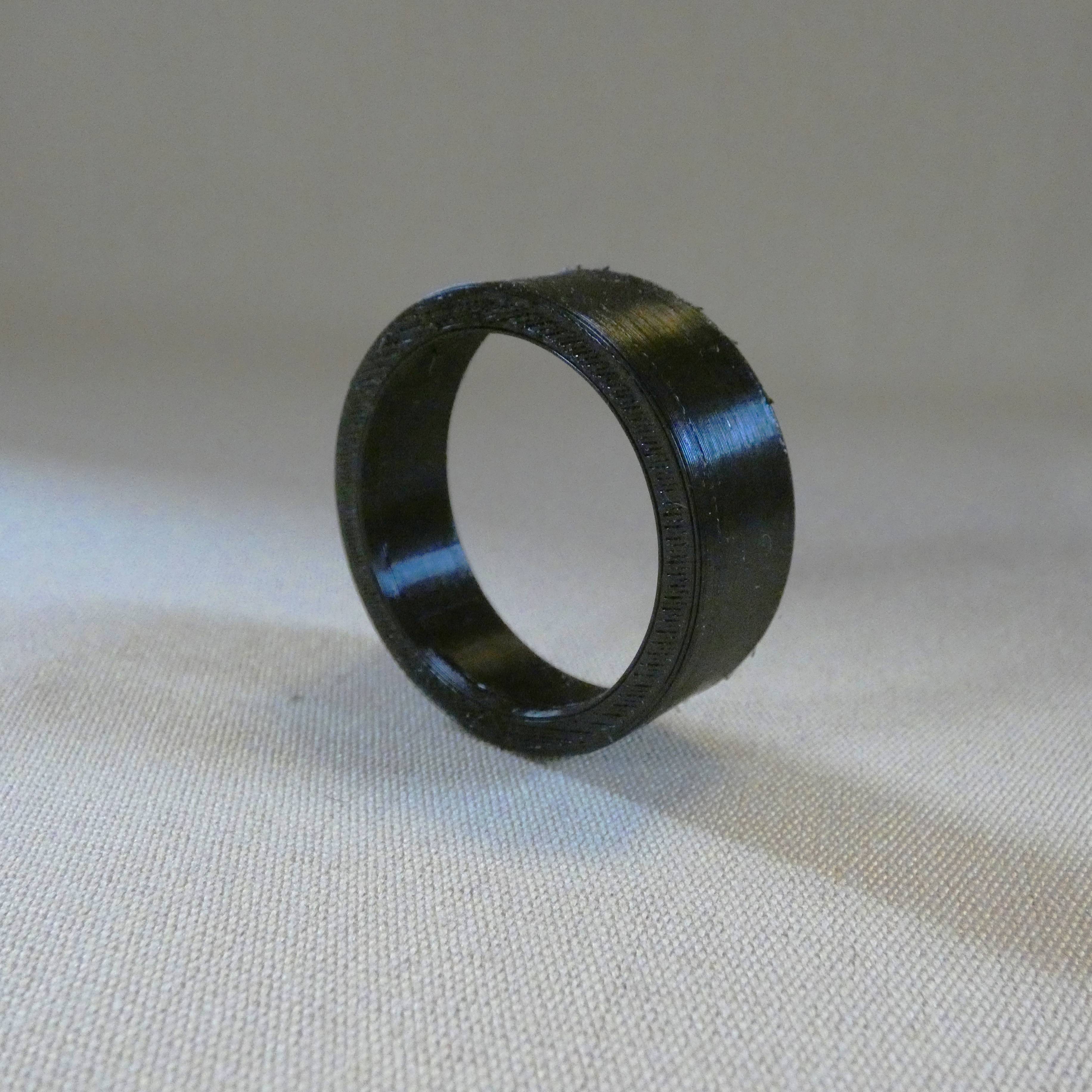

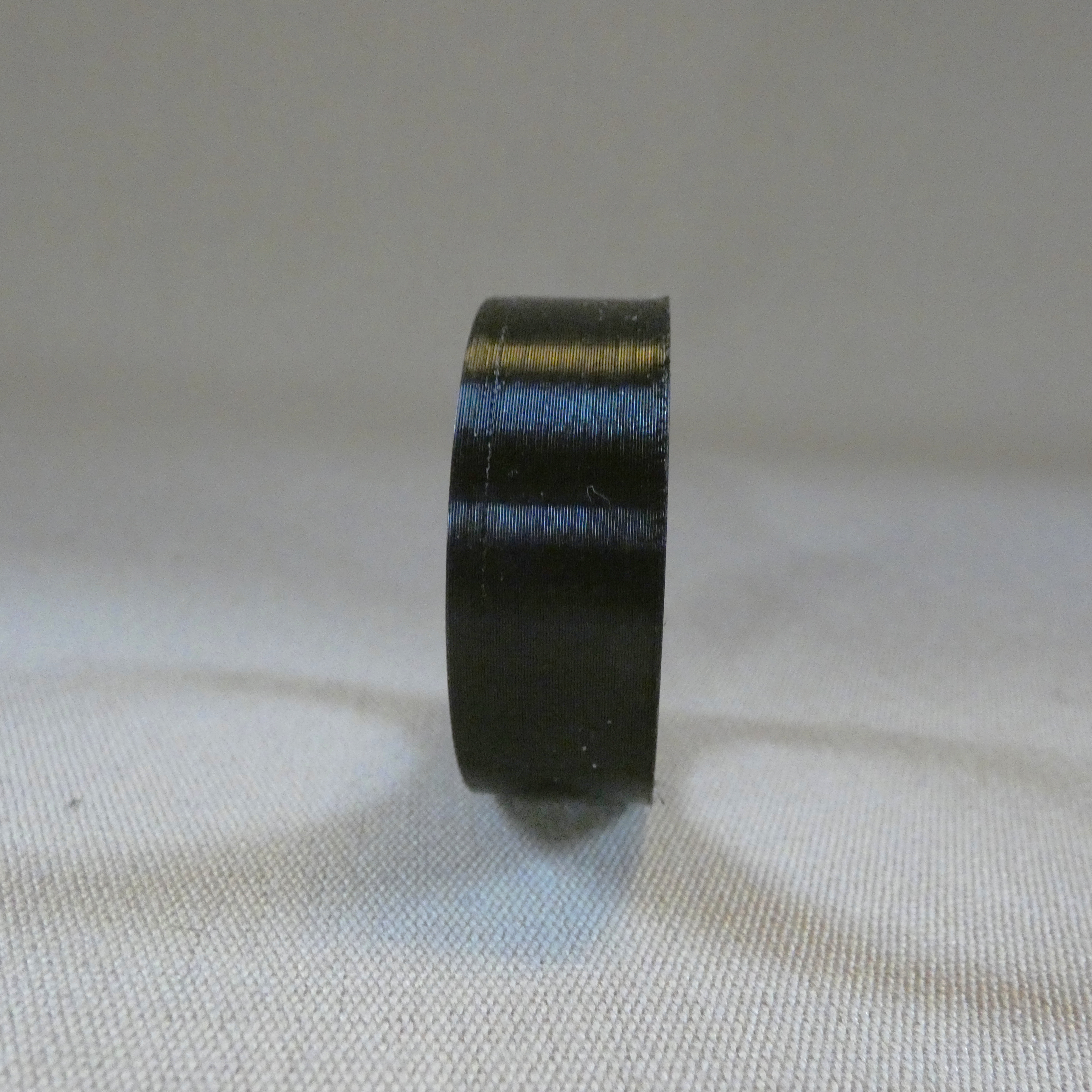

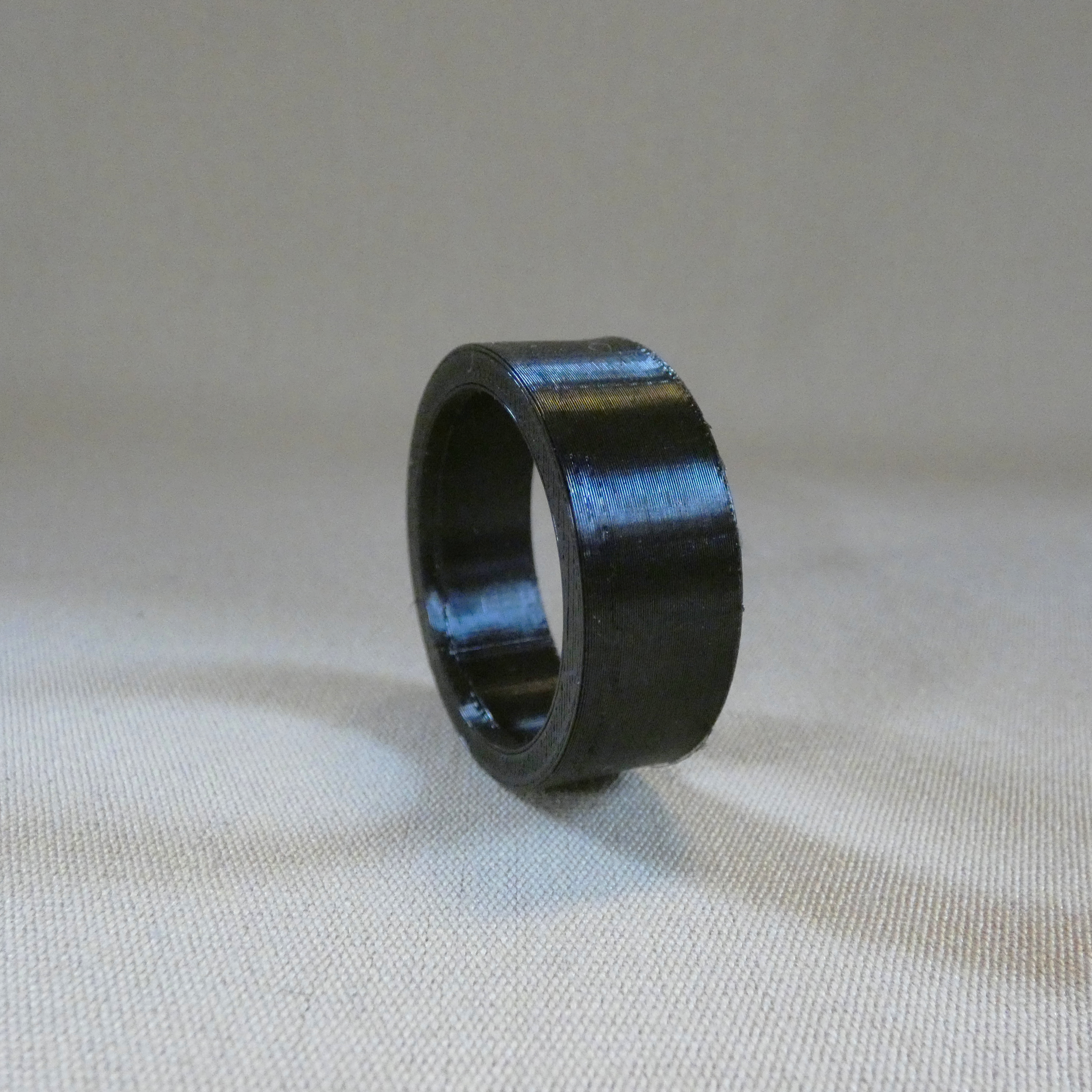

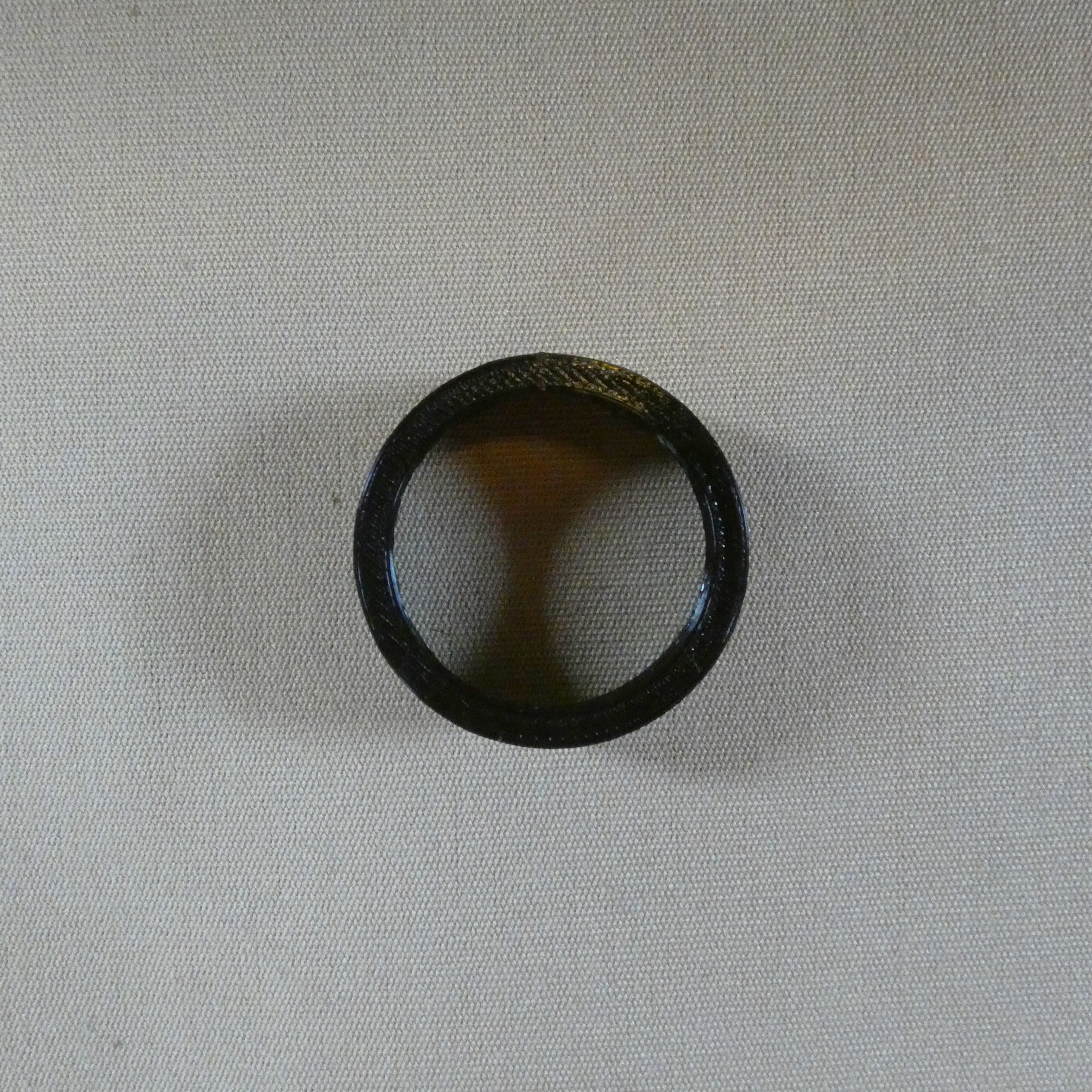

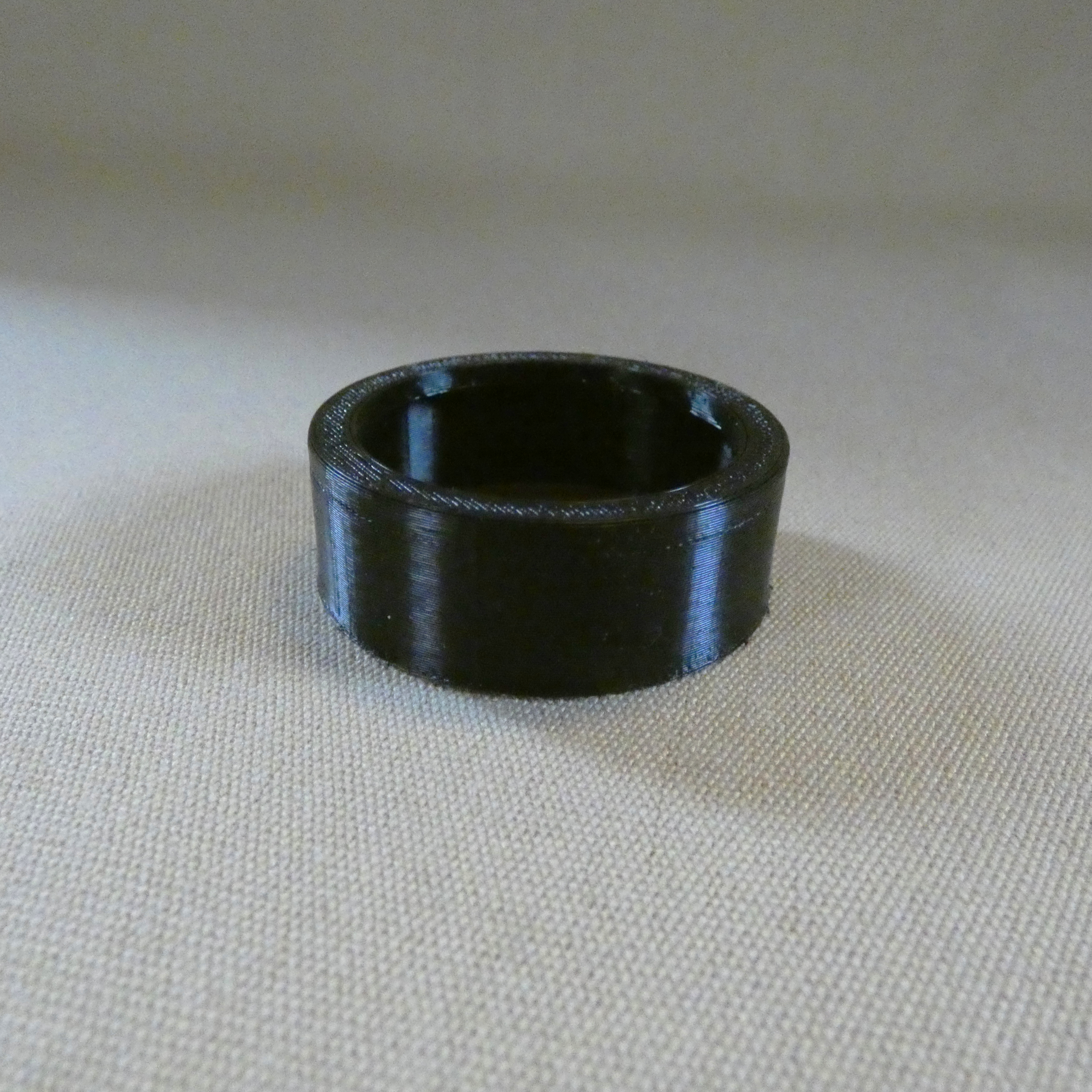

To facilitate its replacement, Shapline offers a digital model inspired by the 40 mm diameter sealing ring referenced 1H5827527A, designed for vehicle locks and intended to be manufactured through 3D printing using a flexible material. A do-it-yourself manufacturing solution that contributes to the maintenance and preservation of your classic automobile.

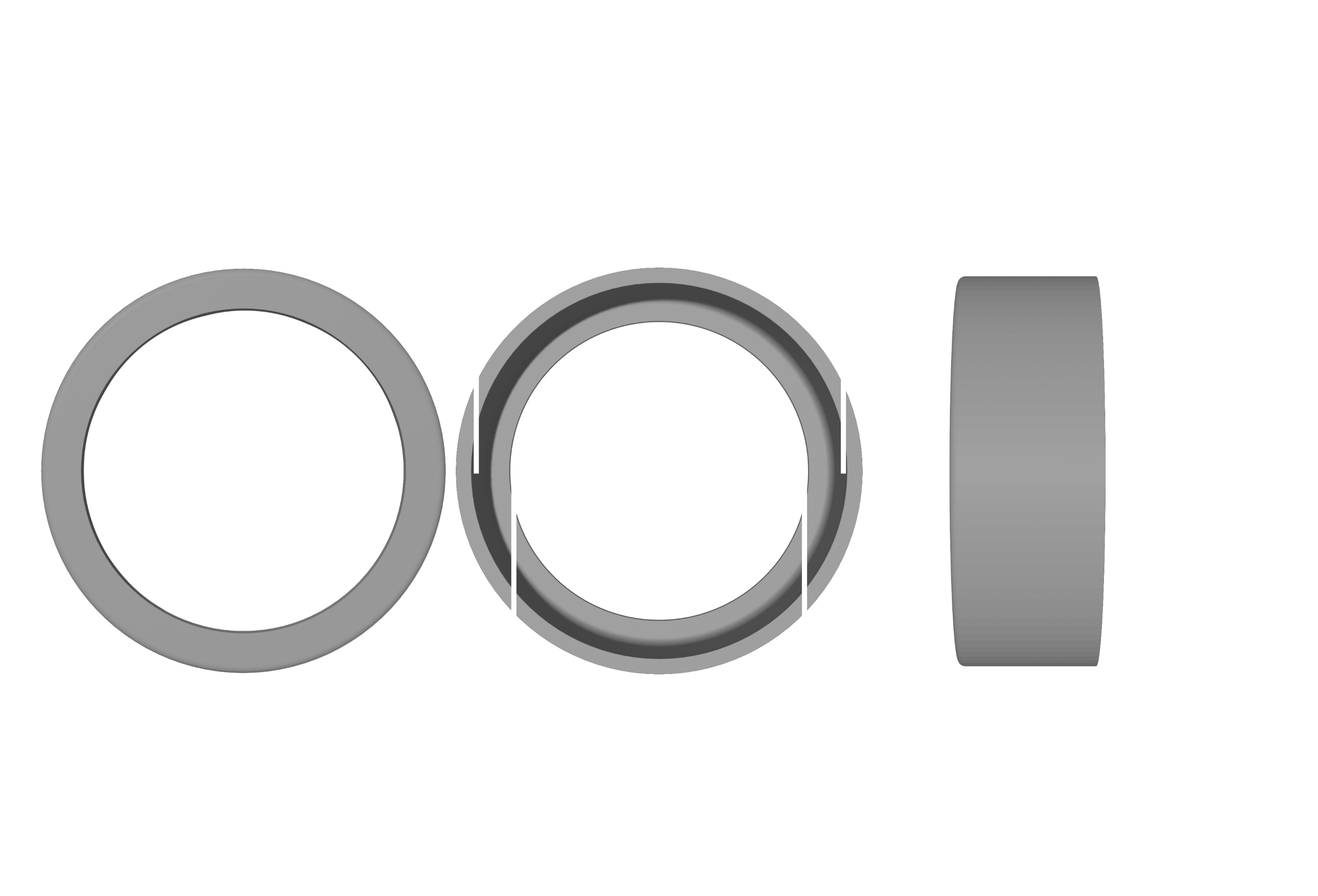

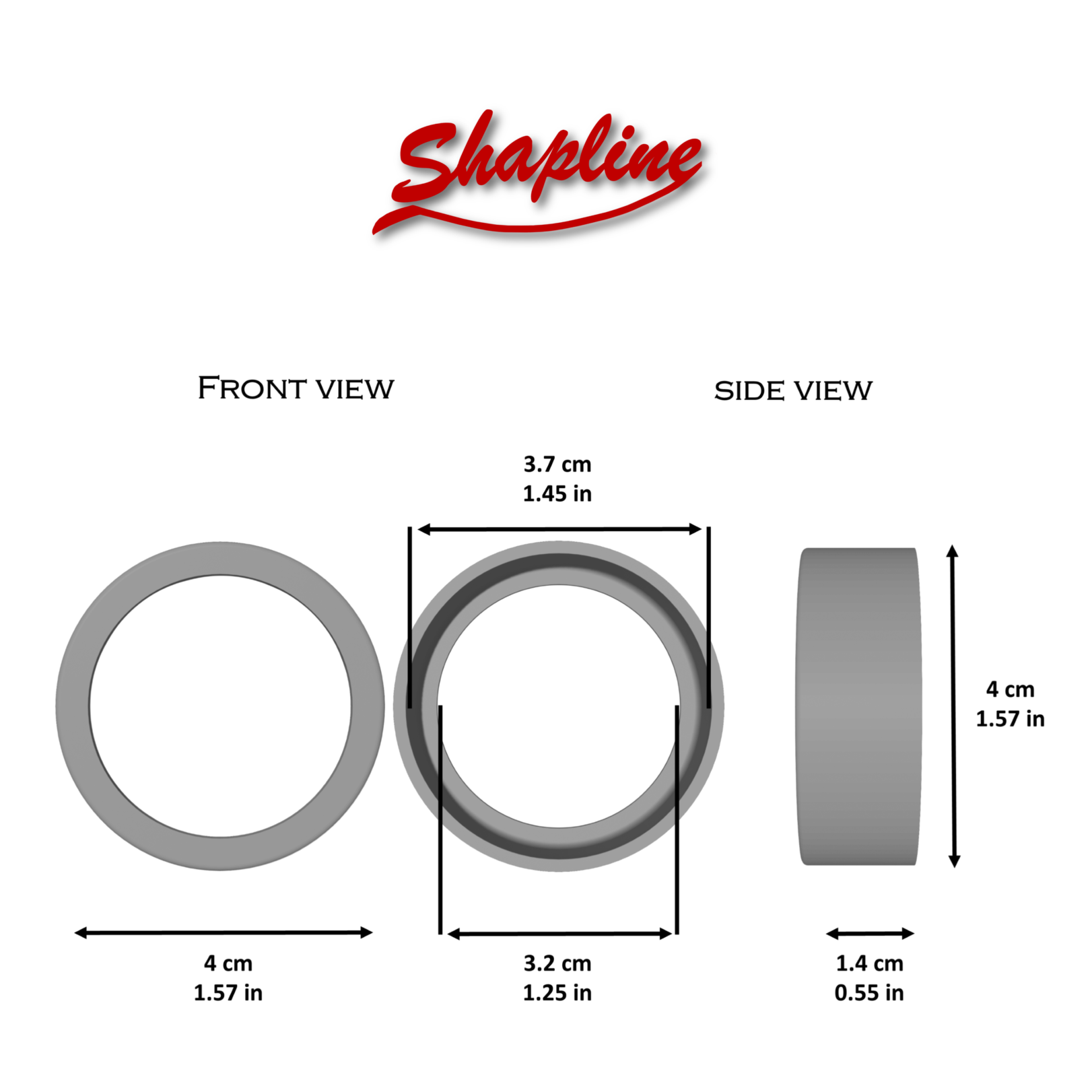

Approximate dimensions after printing
Compatibility
Sealing ring (OEM replacement part numbers):
List of compatible vehicles:
- VW Golf 3 (1994-1999)
- VW Golf 3 Variante (1996-1999)
- VW Jetta (1992-1999)
- VW Passat B3 (1994-1997)
- VW Vento (1992-1998)
Product contents
The package includes:
- All 3D printing files (STL) for the 40 mm diameter sealing ring for VAG Group vehicles
- License of use
Important: Please note that this offer includes digital products only. The components and photographs shown are provided for illustrative and informational purposes only. We recommend using a 3D printer with a build plate measuring at least 10 x 10 cm to print certain parts. Otherwise, these parts may need to be divided into two sections.
3D printing recommendations
When preparing the printing file, we recommend using TPU filament to provide the sealing ring with the necessary flexibility and elasticity. During printing, it will be necessary to configure support structures across the entire part to ensure a successful print.
Important notice
Please note that the products offered here consist exclusively of digital files. This offer does not include any physical products. Furthermore, to manufacture the item presented here, you must already have access to a 3D printer capable of printing STL files.
